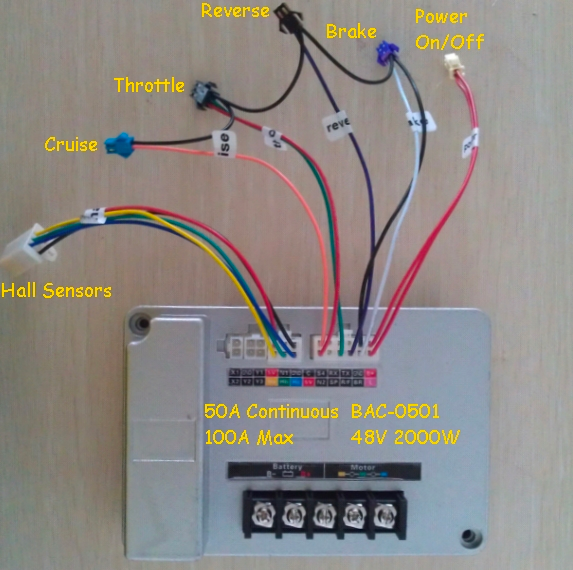

Power On/Off: Short the two wires (connect the two pins of the plug) to turn the controller ON
Throttle: Black is ground, red is +5V, green is the throttle signal wire
Brake: Short the two wires (connect the two pins of the plug) to activate regenerative e-brake
Reverse: Short the two wires (connect the two pins of the plug) to activate reverse
Cruise: Short the two wires (connect the two pins of the plug) to maintain a constant motor RPM
Let me know if you have any questions!
