HPC Controller Wiring and Programming

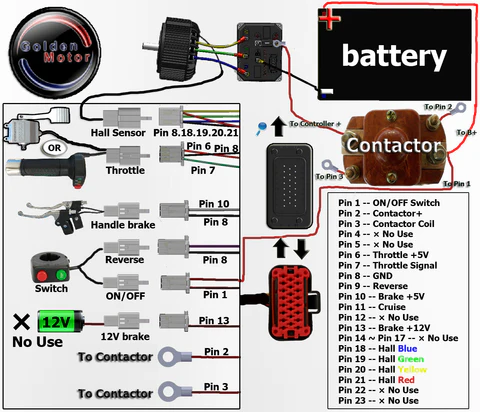

HPC Controller Wiring Diagram:
Programming Software:
You will need this USB programming cable.
The battery and controller need to be ON while programming. The controller needs to be turned OFF and back ON for the changes to take effect.
Software download: https://goldenmotor.bike/wp-content/uploads/2020/03/HPCMIS_WIN.rar.zip
Extract the zip file, then extract the “.rar” file, then open the HPCMIS_WIN application file.
User Guides:
https://goldenmotor.com/SMF/index.php?topic=6092.0
Error Code Information
The controller LED will blink repeatedly if there is an error. The number of times it blinks indicates the errors below.
